Hinge Load Capacity: How to Calculate It and Prevent Costly Failures

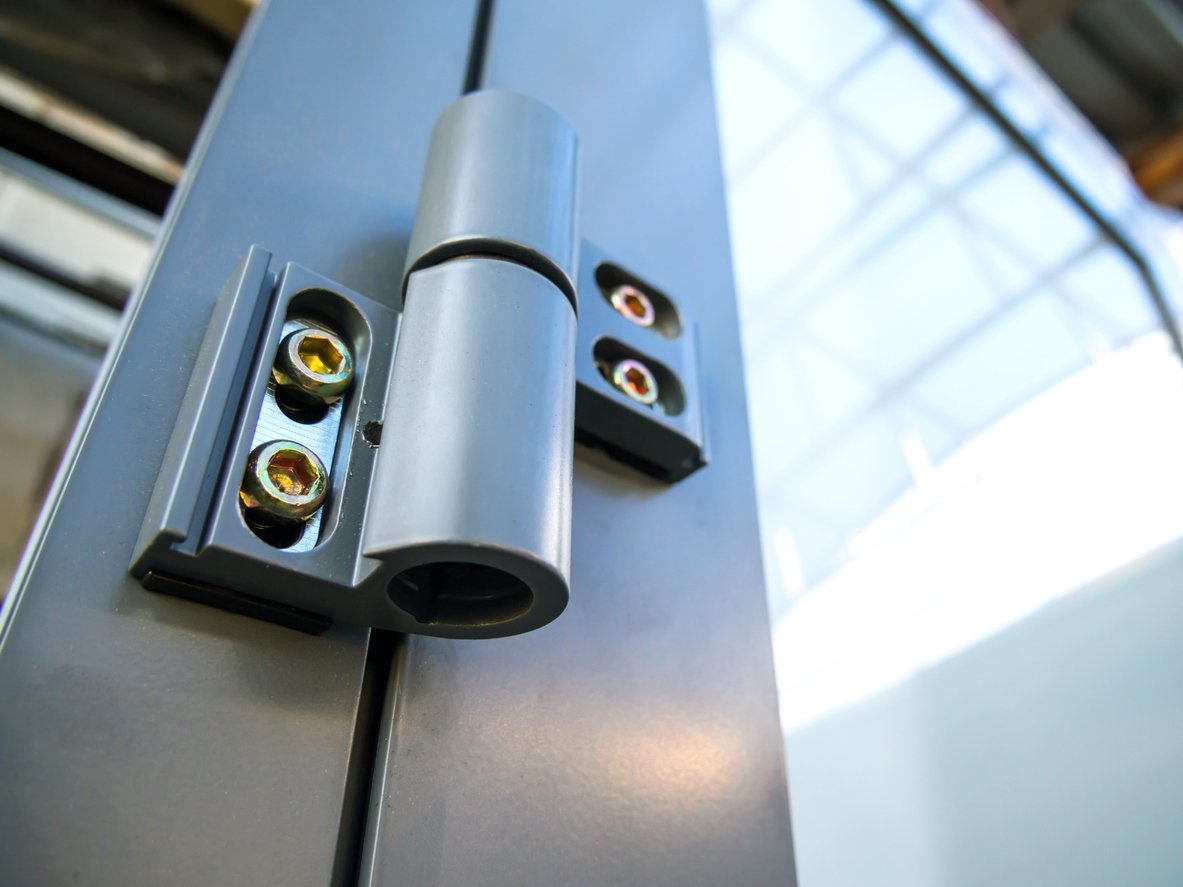

Hinge load capacity is often reduced to a single question: how much does the door weigh?

That shortcut works on paper, then problems show up once the product is in service. The hinge may match the published rating and still deflect, wear early, or transfer stress into the mounting structure.

A hinge rating reflects how load is applied at the pivot, not just the total weight of the panel. Before selecting a hinge, it helps to understand what that rating represents and how the load is developed at the hinge line.

What Is Hinge Load Capacity?

A hinge load capacity rating defines how much load a hinge can support within limits for deformation, wear, and service life.

That load can include:

• Static load, such as a door sitting closed
• Dynamic load from repeated cycling
• Moment load caused by door width and center of gravity

Many load-rated hinges publish a maximum door weight. That value assumes specific door dimensions, hinge spacing, and mounting conditions. Change those variables and the effective load changes as well.

Bearing construction also influences performance. A plain bearing hinge will respond differently under high cycle counts than a bushed or rolling element design under the same load.

When reviewing hinge specs, look for the test conditions behind the rating. Then evaluate how those conditions compare to your application.

What Factors Determine Hinge Load Capacity?

The hinge sees load based on the position of the door’s mass relative to the pivot and how that moment is reacted through the hinge barrel and mounting points.

Door Weight Is the Starting Point

Start with total assembly weight, not panel weight alone.

Include insulation, glazing, hardware, reinforcement plates, and any off-center components. If the assembly weighs 180 pounds in service, that is the number the hinge sees.

After confirming weight, apply a safety factor based on duty cycle and application. For light-use access panels, a lower margin may be acceptable. For commercial equipment or high-cycle doors, a higher safety factor is standard practice to account for wear, shock loading, and user variability.

Weight defines the vertical load. However, it is only one component of the torque.

Door Width Changes the Leverage

As door width increases, the moment at the hinge line increases.

Moment equals force multiplied by distance. The farther the center of gravity sits from the pivot, the higher the bending load on the hinge knuckles and pin.

A 200 pound door at 24 inches wide produces significantly less hinge moment than the same door at 48 inches wide. The hinge rating must account for that difference.

This is where designs get into trouble. The hinge is selected for total weight, but the increased moment from width was never calculated.

Center of Gravity Matters

The center of gravity is not always at the geometric center of the panel. This can have a significant impact on the moment carried by the hinge..

Moment at the hinge line equals door weight multiplied by the distance from the pivot to the center of gravity. If that distance increases, hinge load increases with it.

On irregular assemblies, the center of gravity rarely sits at the visual midpoint. Insulation, hardware, glass, and reinforcement shift mass.

You can determine center of gravity by:

• Suspending the panel from two points and marking vertical reference lines
• Using CAD to calculate center of mass with verified material properties
• Measuring force at different angles and calculating the balance point (with the hinges mounted on a horizontal axis)

If you assume symmetry without verifying it, your load calculation will understate or overstate the true moment.

Number and Spacing of Hinges

Adding hinges reduces load per hinge, but not evenly.

The top and bottom hinges on a tall door typically carry more moment load because they resist rotation caused by gravity. Load distribution depends on hinge spacing, door stiffness, and frame rigidity.Start with accurate load calculations. Then evaluate how the door moves, not just how much it weighs.

Three hinges do not automatically divide load by three. The distribution shifts based on geometry and deflection.

If the frame flexes, one hinge may carry more load than intended.

Mounting Surface and Fasteners

Hinges do not fail in isolation. Load transfers into screws, welds, and the supporting structure.

Fastener shear and pull-out strength must be checked against the moment load at the hinge line. Installation torque is also critical. If the mounting screws are pre-stressed due to an improper installation torque, premature failure of the screws may be the result.

A 220 pound insulated door is mounted to thin sheet metal using short self-tapping screws. The hinge rating covers the weight. The fasteners do not. After repeated cycling, the top fasteners elongate their holes and the hinge shifts out of alignment.

At that point, the door binds and closing force increases. In high-traffic environments, that misalignment can create pinch points or sudden movement.

When reviewing hinge selection, evaluate the full load path from the door through the hinge and into the structure.

How Much Weight Can a Piano Hinge Hold?

How much weight can a piano hinge hold depends on length, mounting method, and load direction.

A continuous hinge distributes load along its full length, which can reduce localized stress compared to discrete hinges. It still carries a bending moment created by door width and center of gravity.

Performance is influenced by:

• Span length, which affects deflection
• Leaf thickness and material strength
• Pin diameter and bearing surface
• Fastener size and spacing
• Substrate stiffness and thickness

If you are selecting a piano hinge for heavy applications, review published ratings per inch or per foot and confirm they match your calculated moment and mounting conditions.

Continuous hinges perform well on long doors and panels, but they follow the same load and deflection principles as any other hinge.

When Is a Hinge Considered Heavy-Duty?

There is no universal line where a hinge becomes heavy-duty.

In practice, higher-capacity hinges share a few characteristics:

• Thicker leaves
• Larger pin diameter
• Higher strength materials
• Tighter manufacturing tolerances
• Published load ratings

Load-bearing hinges for industrial applications should include hinge specs that define capacity under stated test conditions.

Bearing type also influences performance. A plain bearing hinge may support the rated load under static conditions but wear more quickly under high cycle counts. Bushed or rolling element designs reduce friction and distribute contact stress more evenly over time.

If you need hinges for very heavy doors, compare:

• Leaf thickness
• Pin diameter
• Knuckle length
• Bearing design
• Maximum door weight at a given width

A hinge size chart helps compare geometry, but geometry alone does not define capacity. Material strength, bearing surface, and test data matter just as much.

If the hinge does not list a load rating with defined conditions, you are relying on assumption rather than data. It is worth further inquiry. Most manufacturers can provide test conditions or additional load data through their engineering teams.

How to Estimate Required Hinge Load Capacity

You do not need a full finite element model for every door. You do need a calculation based on real geometry and mounting conditions.

Start with these steps:

1. Confirm total door or lid weight.
2. Measure distance from the hinge pivot to the far edge.
3. Determine the true center of gravity location.
4. Define number of hinges and spacing.
5. Review the load rating per hinge under stated test conditions.
6. Apply a safety factor that reflects cycle count and expected loading conditions.

To estimate moment at the hinge line:

Moment equals door weight multiplied by the distance from the hinge pivot to the center of gravity.

If a 200 pound door has its center of gravity 20 inches from the hinge line, the hinge system resists 4,000 inch-pounds of moment.

When width or center of gravity is underestimated, the hinge rating may appear sufficient while the mounting sees higher load than expected. Over time, that often shows up as loosened fasteners at the top hinge, shifted alignment, and increased closing force.

In high-use environments, that misalignment can create uncontrolled movement or pinch hazards.

Hinge Load Capacity Is Only Part of the Equation

Hinge load capacity sets the baseline for structural performance. Weight, geometry, and mounting conditions determine whether a hinge will hold alignment over time or begin to shift under repeated use.

Load rating alone does not define how a door behaves in service. Opening force and cycle frequency influence long-term performance.

Start with accurate load calculations. Then evaluate how the door moves, not just how much it weighs.
