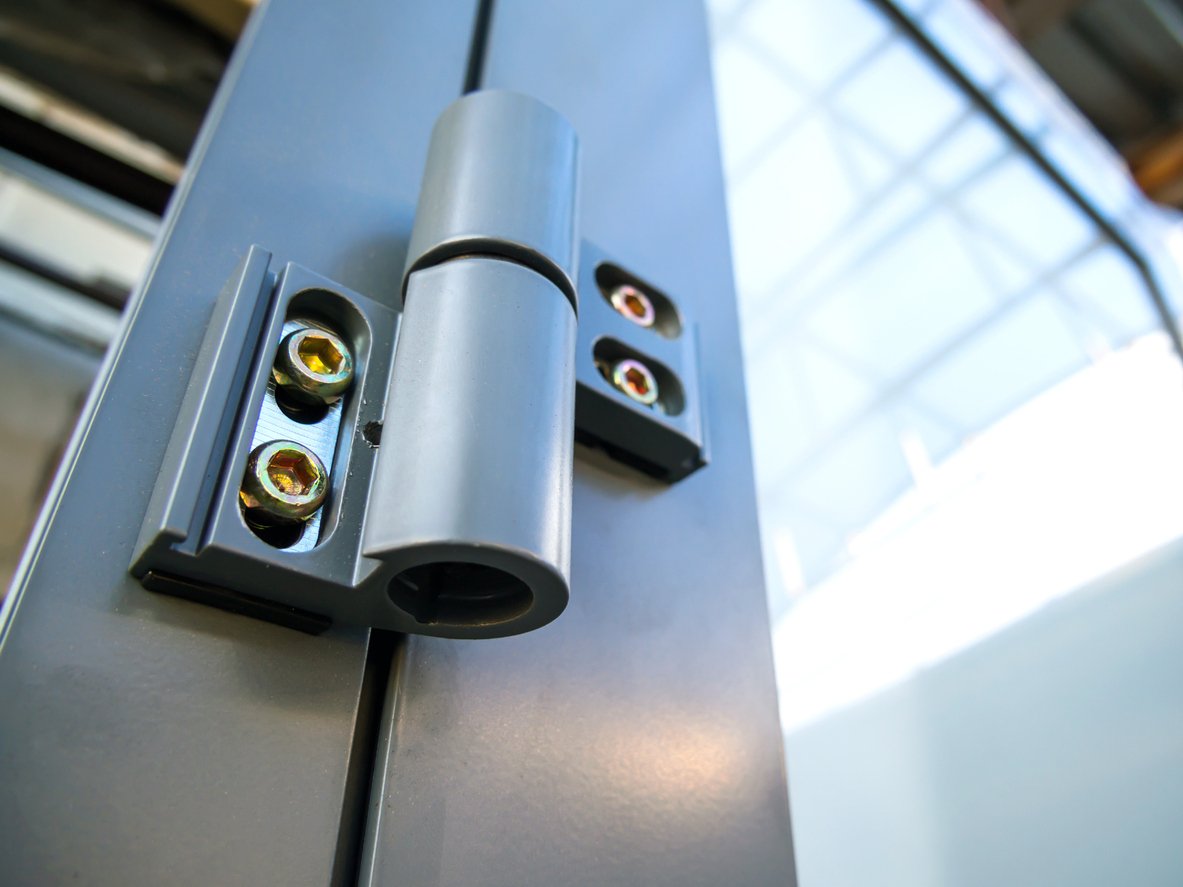

So your next design -- be it a dishwasher, smoker, tanning bed, refrigerator, or another piece of equipment -- needs the support and reliability of heavy-duty industrial hinges. You’re working on your hinge design calculations and material specs, and things are getting complicated.

Why bother with chemistry and electronics when you can get great performance from sturdy, reliable mechanical motion control?

When trying to include an innovative or safety-minded motion control design in your product, there’s a sneaky-confusing word you should know: torque.

Modern product design is heavily influenced by motion control. Many of today’s flashy or high-end products take advantage of innovative hinge mechanism design to stand out from the crowd.

If you’re designing a product with a hinge, there’s a decent chance you want it hidden away from the world.

Product makers who want to take their design to another level have more motion control options than ever.

If you’ve been following our blog you’re already familiar with Vectis™ Springloaded Counterbalanced Hinges and what they can offer but, maybe you still aren’t sure what applications they can really be used for or, maybe you’re just landing on our website and getting to know Vectis™. So, in the spirit of sharing our counterbalance knowledge, we’ve tasked our very creative Design Engineers with imagining an application using Vectis™ Hinges and bringing that application to “life” in order to show you some of the countless applications these counterbalance hinges can be used on. Following you’ll find four applications that are perfect for Vectis™ hinges as imagined by our engineering thinkers, dreamers, and inventors:

The Dresser with a Hidden Surprise

The Vectis™ team traveled to Atlanta, GA to attend the 2017 Hearth, Patio, & Barbecue Associations HPBExpo – North America’s largest indoor-outdoor living showcase.

So, you’ve decided that a springloaded counterbalance hinge is the ideal way to take your project to the next level. And, you already know that a Vectis™ Counterbalance Hinge can address your specific design challenges and that a Vectis™ counterbalance hinge will outperform and out last a gas spring. But, what technical considerations do you need to make before you click the DYO tab?


To help prepare you for your visit to the DYO app, over the next several months we’ll be discussing some of the technical decisions you’ll need to make in order to design the perfect counterbalance for your project. This month we’re going to discuss the effects of vertical distance to the center of gravity and what that could mean in regard to the ultimate function of your project.


The vertical distance to the center of gravity can have a big impact on how your lid acts near the open position. The greater the positive vertical distance the greater the tendency for the lid to self-open at larger open angles. Conversely, a negative vertical distance allows the lid to be potentially counterbalanced up to the maximum 90° opening angle. If you do not want the lid to coast open at larger angles, consider reducing the maximum opening angle to something close to the balance angle of the lid. The balance angle is the angle of the lid at which the center of gravity is directly above the pivot. If you are looking at the torque chart on the Vectis® DYO app, the balance angle is the point where the lid torque drops to zero.


For applications where the vertical distance to the center of gravity is sizeable, a large opening angle is required, and minimal coast towards the full open position is desired, rest assured that we can meet your needs with a Vectis® Counterbalance Hinge or a Vectis™ Custom Counterbalance.




If you’re having trouble specifying a Vectis™ Counterbalance Hinge for your project, give us a call, our engineers are ready to assist you!


Jeremy Redlecki

Product Design Manager

and

Leila Bell

Business Develop Manager

Weber Knapp Company
