Vectis Technology: Making Heavy-Duty Hinges Work for You

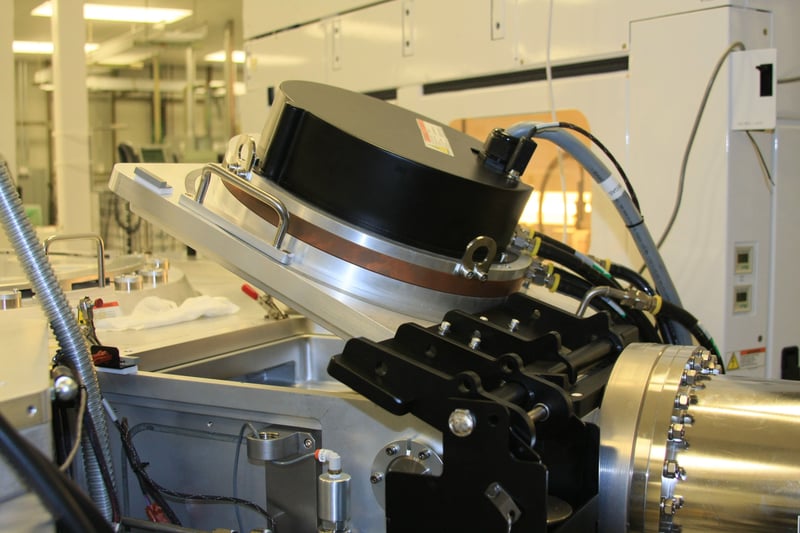

Imagine lifting a heavy lid or panel with ease – no sudden drops, no awkward resistance, just smooth, controlled motion. Heavy-duty hinges make that possible, but designing them to handle weight, movement, and durability requires precision.

Vectis Technology simplifies the process. Built on years of engineering experience, it removes the guesswork from designing motion-controlled heavy-duty hinges, making it easier to fine-tune movement and balance.

Good design comes from looking at challenges in new ways. With the right tools, creating strong, reliable hinges becomes a more efficient and predictable process.

But how does it work?

Why Heavy-Duty Hinges Require Precision Engineering

At first glance, a heavy-duty hinge might seem straightforward. It connects two parts, allowing movement – but designing one that operates smoothly under high loads while maintaining control and durability takes careful engineering.

Strength alone isn’t enough. A well-balanced hinge distributes weight properly, manages motion, and supports repeated use without excess strain.

The right design provides consistent movement, keeps components aligned, and contributes to long-term reliability.

Motion control hinges add another layer of precision. Instead of a simple pivot, they regulate movement, creating smooth operation and controlled positioning. Vectis Technology simplifies this process, giving engineers the ability to fine-tune their designs to meet specific needs.

A well-designed hinge supports usability, safety, and efficiency. Every detail plays a role in how it functions, from the way it distributes force to how it holds position over time.

With the right approach, designing heavy-duty hinges becomes a seamless and predictable process.

How Vectis Technology Simplifies Heavy-Duty Hinge Design

Creating heavy-duty hinges takes more than just selecting the right materials.

Motion control, weight distribution, and balance all play a role in how smoothly a hinge operates. Without the right approach, fine-tuning these elements can involve a lot of trial and error.

Vectis Technology simplifies this process.

By applying motion control engineering and counterbalance mechanics, it creates hinges that move smoothly, support heavy loads, and hold positions as needed.

Instead of relying on complex calculations or guesswork, engineers can adjust hinge parameters with greater accuracy.

A well-designed system makes it possible to build customized solutions without extensive manual changes. This flexibility allows for precise adjustments, making it easier to develop hinges that fit exact specifications for industrial equipment, enclosures, and other applications.

When hinge design is precise, performance and reliability improve. With this technology, engineers have a straightforward way to create motion-controlled hinges that function as intended and hold up over time.

Easier, Smarter Hinge Design: How the Vectis DYO Calculator Helps

Our team of experts recognized the challenge of designing heavy-duty hinges and set out to create a solution that simplifies the process. The result is an easy-to-use design tool that allows for precise customization based on exact specifications.

Enter the Vectis DYO Calculator.

Utilizing proprietary design software, the Vectis DYO calculator allows a user to input their required dimensions and design specific hinge(s) for their next job. Following these five steps, any engineer or designer will be able to set specific hinge parameters for their next job:

(Download the full Vectis DYO guide here)

1. Figure out Your Starting Specs

Begin by plugging in the three critical parameters of the load to be counterbalanced:

• Lid weight
• Horizontal distance from the lid center of gravity to the hinge pivot axis
• Vertical distance from the lid center of gravity to the hinge pivot axis



2. Pick a Vectis Hinge

Select the model of Vectis and the quantity desired. Use the slide bar variables to obtain the optimum torque curve and fine-tune the open and close feel.

3. Determine How Many Hinges You Need

You should weigh several factors when deciding on the number of hinges for each lid. These include mounting considerations — for example if your hinges must support the middle of an unusually long lid. Very large lids can require several Vectis hinges to counterbalance that weight.

4. Try out the Counterbalancing Action You Want

The orange Spring Torque Curve line on the app’s graph represents the spring-based opening torque applied by the hinges.

By inputting or adjusting a few additional parameters on the app, you can position the orange line above, on, or below the black line at different angles. This helps you control the amount of spring-based torque applied at each angle.

The lighter orange lines give you an idea of the controlled friction band built into your hinge. This friction helps hold your load in place. In areas where the black lid torque line is between the light orange lines, the lid or load will stay put.

Remember: All inputs are interactive. Changing one value in the app may alter or limit other values.

5. Designate the Built-In Open Stop Angle

In the Lid “open stop” Angle input box, simply type in the open stop angle desired. You can instead specify an open stop angle between 45° and 90°. Variable A and B represent geometry that’ll be permanently cut into the internal linkage of your hinges.

The spring settings dictate the initial spring adjustment made at the factory. The unique result of these three numbers tailors the hinge to your needs. The result is reflected on the orange Spring Torque Curve line.

Avoiding Common Pitfalls in Heavy-Duty Hinge Design

Designing heavy-duty hinges comes with its challenges, but a few simple adjustments can make a big difference in performance and longevity.

Engineers and designers often run into the same issues – things that seem small but can lead to frustrating results down the line.

Keeping these common mistakes in mind can help create smoother, more reliable hinge designs from the start.

• Not Accounting for Weight and Load Distribution
  Every hinge supports more than just weight – it also manages how that weight is distributed. If the center of gravity shifts too much or isn't considered in the design, the hinge may wear out faster or require more force to operate than expected.


• Picking the Wrong Hinge for the Job
  Not all hinges are built the same. Some are meant for simple movement, while others provide controlled motion or counterbalancing. Choosing the right one early on helps avoid unnecessary adjustments later.


• Forgetting About Counterbalancing
  A heavy lid or panel that’s hard to lift – or worse, slams shut – usually points to a counterbalance issue. A well-balanced hinge moves smoothly, stays in place when needed, and reduces strain on the user.


• Skipping Torque Adjustments
  The way a hinge moves matters just as much as its strength. Without the right torque settings, movement can feel too stiff, too loose, or unpredictable. Adjusting the torque curve creates a controlled, steady motion.


• Overlooking Mounting Placement
  Where a hinge is placed affects how well it works. If hinges are too close together, too far apart, or misaligned, they can create uneven wear and strain. Proper mounting keeps movement smooth and prevents unnecessary stress.



Bringing It All Together: Smarter Hinge Design Made Simple

Designing heavy-duty hinges doesn’t have to be complicated. With the right tools, engineers can fine-tune motion, balance weight distribution, and create a reliable, controlled design without endless trial and error.

Vectis Technology simplifies the process by providing a clear, customizable approach to hinge design. Engineers can adjust hinge performance with precision, creating motion-controlled solutions that fit specific needs.

No matter the application, a well-designed hinge makes movement smoother, more efficient, and easier to control.

Designing the Perfect Hinge? We’re Here to Help

Our team of engineers is excited to answer any motion-control or Vectis DYO app questions you may have.

Click below to contact our team of experts:

Note: This article was originally published in February 2022 and was recently updated to reflect current industry trends
