Industrial Hinge Specifications: Are You Missing Something?

A hinge can look perfectly fine on paper. Unfortunately, the real world doesn't always agree.

Getting industrial hinge specifications right takes some thought about how the hardware will perform once it's put to work. A hinge that handles the expected load today might not hold up quite so well after years of repeated use.

And finding that out after production? That's an expensive lesson nobody wants to learn.

Before you settle on a hinge for your next design, let's talk about what those specifications are telling you and what might be missing.

Why Do Hinge Specifications Matter?

A hinge has a straightforward job, but the forces acting on it aren't always so simple. Supporting a door or lid doesn't automatically mean the hinge can handle everything the application puts it through.

Getting those requirements wrong can lead to problems, like:

• Sagging or misalignment: An overloaded hinge may allow a door to shift out of position.
• Premature wear: Repeated movement can wear down components before the intended service life.
• Poor motion control: Incorrect torque requirements can make a lid difficult to operate or allow it to close too quickly.
• Costly redesigns: Problems found after production may require changes to the hinge or surrounding structure.

And sometimes, there's more at stake than replacing a worn-out hinge. A heavy refrigerator door can potentially carry another 150 pounds of groceries. If its hinges fail, someone could get seriously hurt.

That's why we consider the consequences of failure when determining a hinge's factor of safety. The more severe the potential failure, the more attention the design demands.

What Goes Into Hinge Specifications?

There's a lot happening every time a door or lid opens. How much weight is the hinge supporting? How often will it move? And what happens when someone opens it a little harder than they should?

Each detail can affect how well a hinge performs over time.

Load Ratings

A hinge needs to support the weight of whatever it's attached to, but the load rating alone doesn't tell the whole story. The location of the center of gravity and the distance between hinges can change how forces are distributed.

Even a hinge rated for a certain weight may struggle if the mounting arrangement puts more stress on it than expected. A refrigerator door, for example, also needs to handle the weight of everything stored in its shelves.

Cycle Life

A hinge that works perfectly on day one still has a lot of work ahead of it. Cycle life refers to how many times a hinge is expected to open and close while meeting its performance requirements. For products used frequently, those movements add up quickly.

We design and test our hinges around each customer's reliability requirements. Here's an example from one of our refrigerator applications:

Those extra 75,000 cycles aren't an arbitrary cushion. The testing target depends on the sample size and the customer's reliability requirements, using statistical methods including Weibull analysis.

Opening Angle

A hinge's opening angle determines how far a door or lid can travel. That sounds simple until the surrounding product gets involved.

Too little travel can make access awkward, while too much without a suitable stopping mechanism can stress the hinge or nearby components. The range of motion needs to work with the rest of the design.

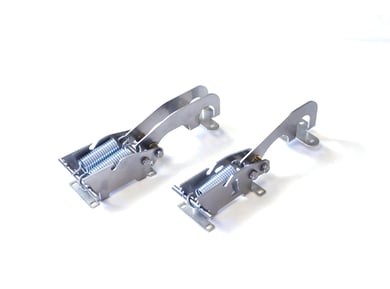

Torque

Two doors can weigh the same and still behave very differently when opened. Torque depends on the force acting around the pivot point and the position of the center of gravity. For a horizontally hinged lid, that torque can change throughout its movement.

This matters when selecting a friction hinge or counterbalance mechanism. Engineers need to account for the effort required to open the product and how the lid behaves when released. Nobody wants a heavy lid that suddenly decides it's time to close.

Mounting Style

Even the right hinge won't do much good if there's nowhere practical to mount it. Available space and fastener locations affect how the hinge fits into the design, while the surrounding structure needs enough rigidity to handle the forces acting on it.

If that structure flexes too much, even a well-designed hinge can struggle to do its job.

How Does the Working Environment Affect Hinge Specifications?

A hinge might perform beautifully during testing, but where it ends up working can change the equation. Temperature, moisture, and even electrical properties can influence how a hinge needs to be designed.

Temperature and Material Selection

Think about the difference between a commercial refrigerator and an outdoor grill. Both rely on hinges, but they operate at very different temperatures, which can affect material properties and component performance.

We account for those temperatures when choosing hinge materials, including bushings and other moving parts. It's also worth considering temperature changes during operation, not just when the product is sitting idle.

Corrosion Resistance

Moisture can be hard on metal components, especially in humid or outdoor environments. Material and finish selection can help protect a hinge against corrosion.

Stainless steel may work well for some applications, while protective finishes on other metals can provide enough resistance in less demanding environments. A finish that works indoors may not hold up nearly as well outdoors.

Electrical Conductivity

Here's one hinge specification that might not immediately come to mind: electrical conductivity.

In certain freezer designs, the magnetic door gasket can generate static electricity as the door opens and closes. If plastic bushings electrically isolate the door, that charge may build up and eventually discharge near sensitive electronics.

We've addressed this by using conductive components, including bronze bushings and metal rivets, to create an electrical path through the hinge to a grounded structure.

Putting Hinge Specifications Together Before Production

Hinge specifications don't operate in isolation. Changing one part of the design can affect how the rest performs.

A few questions worth asking:

• Do the specifications work together?
• Have we accounted for the finished product's operating conditions?
• Does the design need additional testing?
• What happens if the requirements change?

Bringing our engineers into the process early gives us time to work through potential problems while there's still room to make adjustments.

Get the Hinge Right Before the Design Is Locked In

A hinge might be a small part of the finished product, but getting its specifications wrong can create some pretty big problems.

Thinking through how the hinge will perform in the real world can save a lot of frustration later. And when something doesn't add up, our engineers can help work through it before production starts.

After all, the best time to find a problem with your hinge design is when it's still just a design.
