Motion control system design affects how people interact with products in everyday settings. If motion feels smooth and natural, users barely notice it. If it feels heavy or awkward, the design becomes a frustration.
That moment of resistance – lifting a lid, moving a panel, opening a door – can shape someone’s entire experience with the equipment. Poor usability often signals deeper design issues that limit performance.
Engineers focused on motion control system design consider more than just movement. They think about safety, repeatability, and long-term function.
When done well, this kind of design supports a safer, more efficient environment without calling attention to itself.
3 Core Elements of Motion Control System Design
When designing for user experience, motion control systems allow for safety and flexibility. These characteristics not only improve the durability and longevity of your product but also allow for:
- Ease of accessibility
- Flexible designs
- Safety in all situations
1. Ease of Accessibility
Accessibility becomes more important as the weight of a component increases. Beds that fold, commercial oven doors, and manufacturing equipment often include heavier moving parts. These components need support to open and close safely without requiring too much physical effort from the user.
In these situations, spring-assisted and counterbalance hinges are valuable tools. Both types are designed to reduce effort, improve control, and create a smoother experience.
Spring-assisted hinges use internal force to support motion. They appear in many applications where movement is frequent and consistency matters. When properly designed and installed, they allow heavy components to move with minimal input — often just a light push or pull.

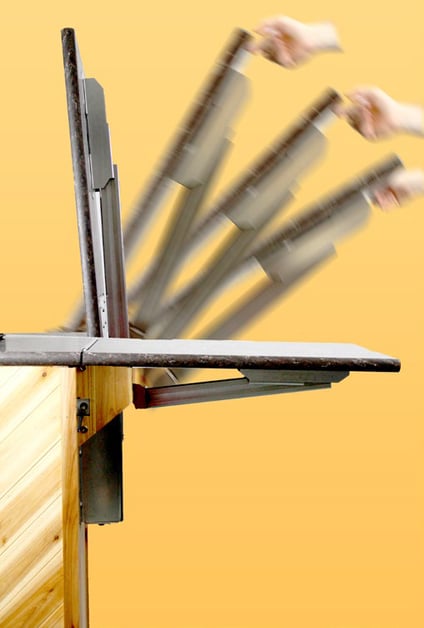

Counterbalance hinges use torque to offset the weight of a component and help hold it in position. This type of hinge is common in products that need to stay open at specific angles or require controlled motion. You’ll often see them in:
- Grill lids
- Tanning beds
- Cryogenic freezers
2. Flexible Designs
Motion control hinges provide flexibility – not just in how they move, but in how they’re selected and integrated. Engineers often need to weigh performance needs, space limitations, and budget. The right hinge helps meet those demands without sacrificing reliability or safety.
Design teams often approach these decisions using a good, better, best framework:
- Good: Gas spring-assisted hinges are cost-effective and easy to source. They support weight and assist motion in many light-duty applications. However, they tend to perform poorly in environments with high heat, pressure, or constant use. Failures due to gas leakage or seal breakdown can lead to inconsistent movement or total loss of function.
- Better: Mechanical spring-assisted hinges are more stable across various conditions. They don’t rely on internal gas, making them a more durable choice for harsh or unpredictable environments. These hinges provide smooth operation, consistent support, and long service life without the risk of pressure-based failure.
- Best: Counterbalance hinges offer the highest level of control. They allow partial opening and fixed positioning – useful for lids, panels, or surfaces that must stay open at specific angles. Designers can specify motion characteristics like force, resistance, and travel range. Counterbalance options are also highly customizable, which makes them well suited to complex or heavy-duty equipment.
3. Motion Control Systems for Safety in All Situations
Safety depends on how a product moves and responds during use. If a component feels unstable or requires too much force, people may avoid using it or find workarounds that introduce risk.
Motion control system design can help prevent those issues. Hinges that assist with lifting, lowering, or positioning reduce strain and make movement more predictable. This helps limit sudden drops, awkward movements, or repetitive stress on the user.
These design choices matter in work environments where tasks are repeated throughout the day. In places like industrial kitchens, healthcare facilities, or production floors, even small improvements in motion control support safer habits over time.
Components that offer smooth, consistent movement also help preserve the equipment’s condition. Better control means less wear, fewer abrupt impacts, and a longer service life.
See the safety features of our counterbalance hinge motion controls:
Frequently Asked Questions about Motion Control System DesignBelow are answers to common questions about motion control system design Q: What are the maintenance requirements or lifecycle expectations for these hinges?A: High-quality spring-assisted and counterbalance hinges are typically durable and low-maintenance. In most standard-use environments, they last for years with minimal upkeep. Occasional checks are still helpful – look for signs like unexpected resistance, looseness, or irregular movement. Environmental factors such as dust, extreme temperatures, or heavy wear may shorten the hinge’s lifespan. Following the manufacturer’s care guidelines keeps hinges working longer.
Q: How do motion control systems perform in extreme environments (e.g., outdoors, high humidity, corrosive conditions)?A: Motion control system performance in extreme environments depends on the materials and engineering behind the components. Stainless steel and other corrosion-resistant materials work well in humid, outdoor, or chemically harsh conditions by protecting structural integrity and motion quality. Systems exposed to heat, cold, or contamination may require sealed housings or specialized coatings. Gas springs tend to be more vulnerable in these settings, while mechanical spring-assisted and counterbalance systems offer more reliable performance. Selecting the right materials early helps reduce safety risks and avoid early failure.
Q: Are these hinges customizable to fit unique product dimensions or motion requirements?A: Yes, many spring-assisted and counterbalance hinges can be customized to meet specific motion needs. Engineers can tailor torque, range of motion, and opening force to suit product performance goals. Customization may include mounting configurations, finishes, size constraints, and integration with other components. This is especially valuable in OEM designs or tight spaces. Collaborating with the manufacturer during the design phase helps ensure a smooth fit within the final product. |
Improving Motion Control System Design
Motion control system design directly impacts how equipment feels in everyday use. Well-balanced components reduce strain, improve safety, and support smoother operation.
Choosing the right hinge or motion element helps products perform consistently across environments. It also helps users work more efficiently without distraction.
When motion feels natural and reliable, it reflects thoughtful design – one that promotes usability without sacrificing function.
Learn More About Hinges for Motion Control Design
Ask an engineer directly for motion control design tips to increase your equipment’s ease of accessibility. Contact us now:
(Editor's note: This piece was originally published in October 2021 and was updated in June 2025.)
